Base drum heater 150°C

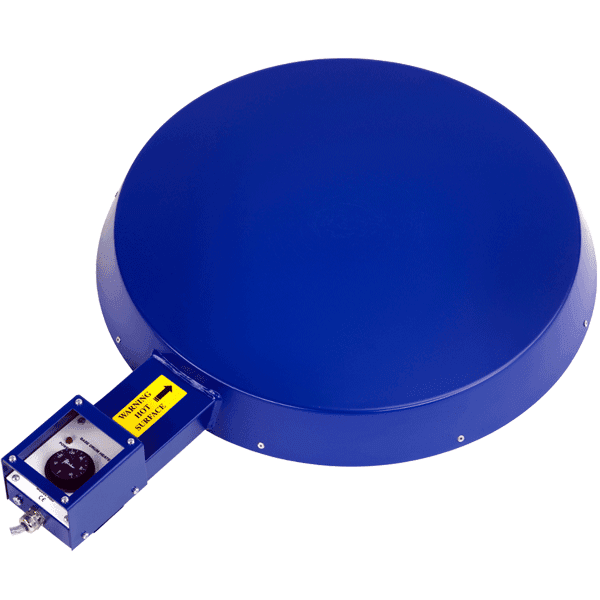

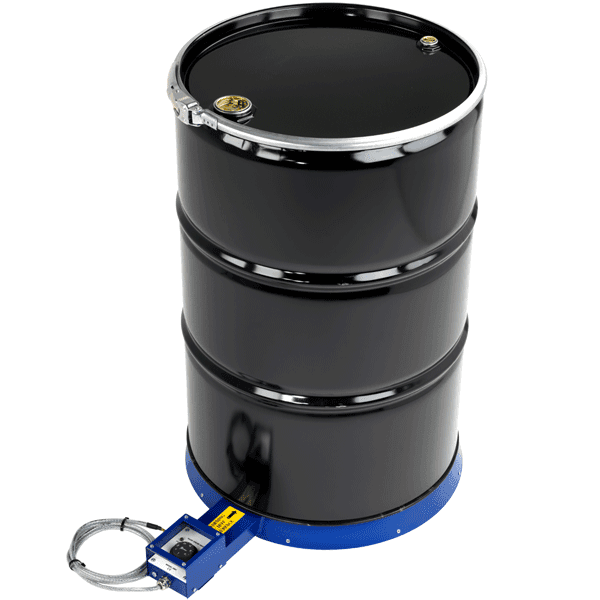

This drum heater is designed as a base heater where the drum is placed directly on the circular heated area. The casing is made of 2mm steel plate which makes the base drum heater ideal for using in tough industrial environments such as warehouses, construction sites and chemical facilities.

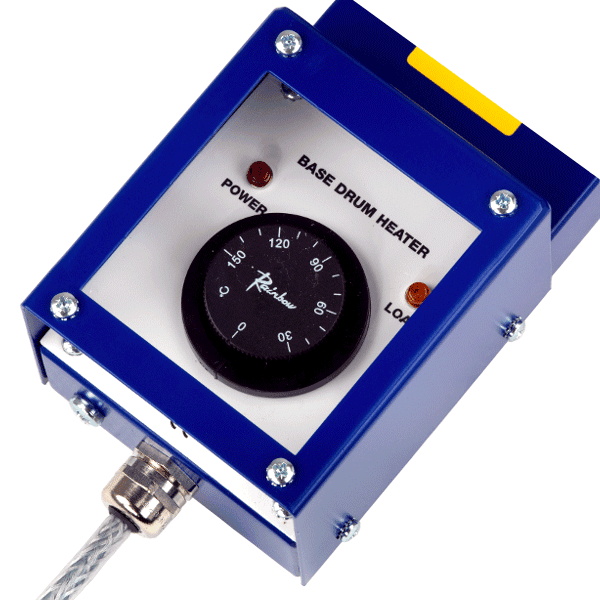

The base drum heater has an even heat distribution throughout the heat-emitting surface, has an adjustable analogue thermostat 0-150°C and two meter supply cable.

IHPs base drum heaters is specially designed for melting or to reduce the viscosity of substances such as soaps, fats, resins, lacquer and several oil based products.

This base drum heater can be used together with IHPs other drum heaters and drum insulation jackets.

Related products
Drum insulation jackets
Side drum heater 90°C
Drum heater digital 90°C
Silicone drum heaters 120°C
Silicone drum heater IP65 200°C
Heating jacket drum digital 200°C
Drum heaters food grade 220°C
High temperature drum heaters 220°C

Downloads

Technical specification

Robust steel construction
Power supply 230V or 110V
Thermostat 0-150°C
Built in insulation 50mm
Class IP40
Moister and chemical resistant
Two meter supply cable
Outer size 880 x 600 x 105mm (L x B x H)

Standard range

Article numberDiameter topDiameter baseHeightPowerSupplyDrum size
30-HBD-1ø550mmø600mm70mm900W230V200 to 210 liter
30-HBD-2ø550mmø600mm70mm900W110V200 to 210 liter
