Ceramic flat heaters 420°C

Flat strip heaters made of ceramic, also known as ceramic flat heaters, are versatile and suitable for various contact heating applications. This heating technology is commonly used in plastic forming, packaging machines, vacuum packing, the food industry, anti-condensation solutions, and extruders.

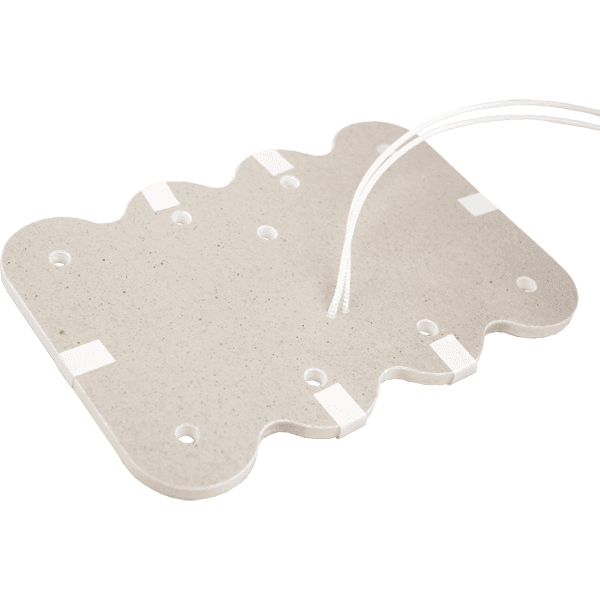

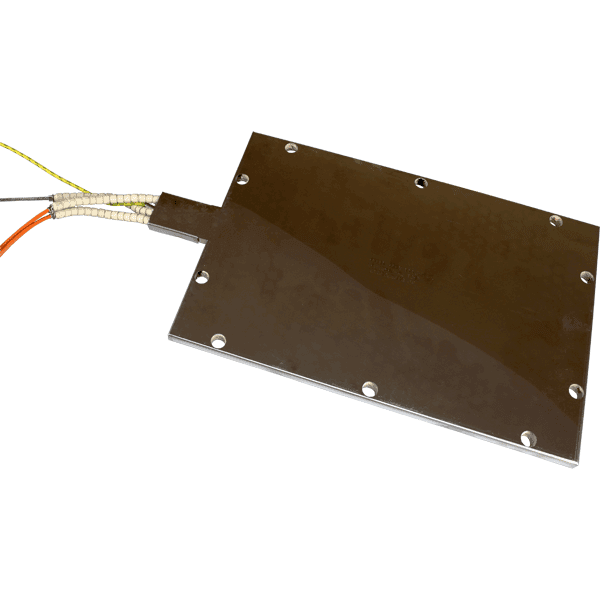

The construction of ceramic flat strip heaters varies depending on the type of ceramics. Most models feature spiral resistance wires threaded through ceramic components. They can be encased in a stainless steel sheath for added protection or designed as flexible heating pads without casing. Custom connections are available to meet specific requirements.

Ceramic flat heaters can be designed to fit different shapes and machines, incorporating holes, slots, and fasteners as needed. They can also include built-in sensors or thermocouples for precise temperature control. When combined with our standard PID controllers, these heaters offer accurate and reliable temperature regulation.

Related products:
Mica flat strip heaters 320°C
Mica heaters 400°C

Downloads

Technical specification

Surface load up to 8W/cm²
Working temperature up to 420°C
Customized voltage
Available as Single phase/ Dual phase / Three Phase (specify ∆- or Y-connection)
Internal Type J Thermocouple or TC K can be built into the heaters. Other types of sensors are usually available as option.
Length from 112mm up to 1800mm
Standard thickness 12 +/-1mm
Casing in stainless steel
Ceramic fiber insulation included
Resistence wire made of Nickle/Chromium 80/20
Extra flexible ceramic heater pads 900°C available. Please contact sales.
