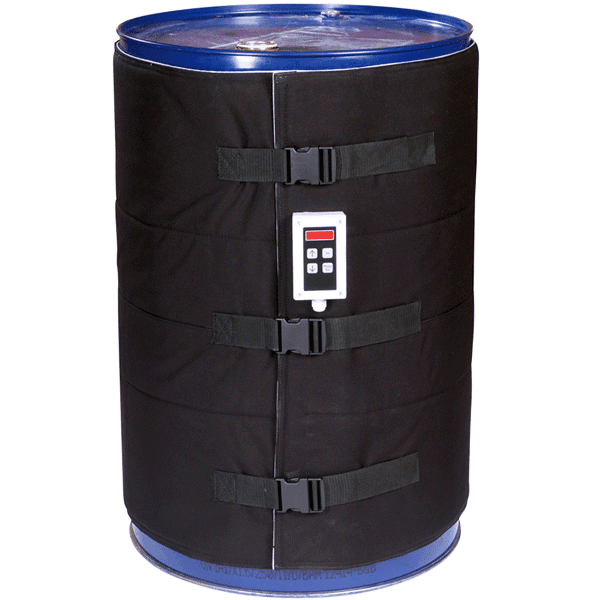

Drum heater digital 90°C

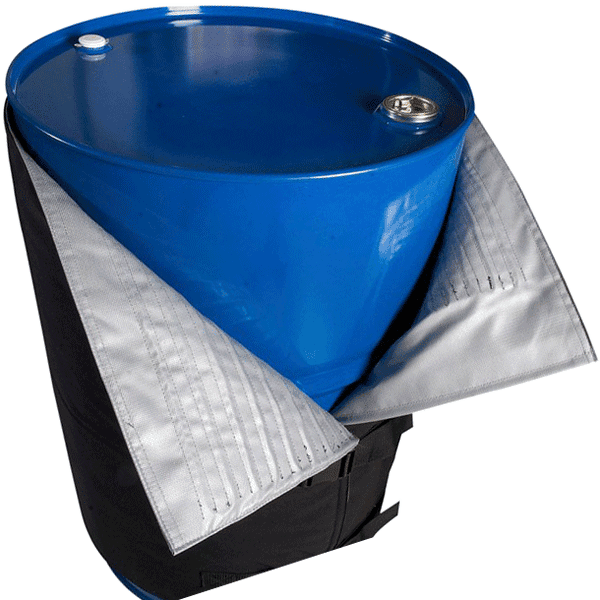

The drum heater is constructed like a heating blanket and made of Teflon treated polyester with integrated insulation and heating cable as a heating source. It comes with straps and buckles.

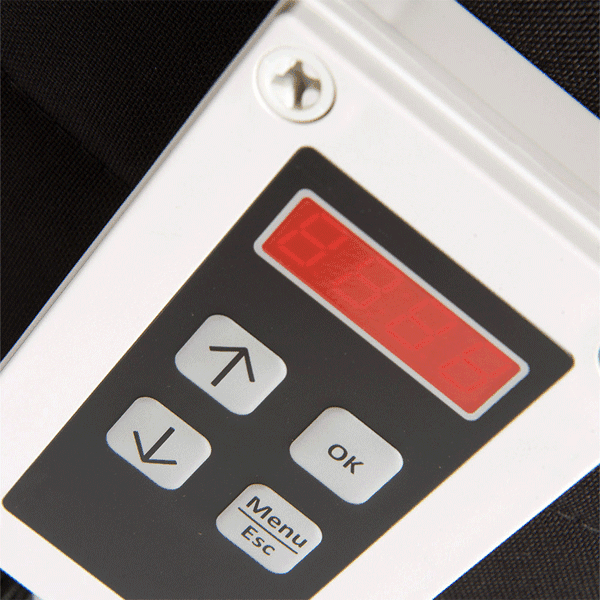

IHPs drum heater is equipped with a digital controller 0-90°C that gives high accuracy and is easy to handle. The regulator provides superior precision and includes functions such as timer and ramping functionality. The display shows the current temperature and can be set to present the temperature in both Celsius and Fahrenheit degrees.

This drum heater can be used for industrial heating and warm keeping of water, fats, butter, vaseline, resins, oils, diesel, lubricating oils, fuel oils and other industrial liquids that are stored in steel drums.

There are also insulation lids in our standard range.

Related products
Drum insulation jackets
Side drum heater 90°C
Silicone drum heaters 120°C
Base drum heater 150°C
Silicone drum heater IP65 200°C
Heating jacket drum digital 200°C
Drum heaters food grade 220°C
High temperature drum heaters 220°C

Technical specification

Drum heater of Teflon coated polyester

Built in insulation of polyester

Supply 230V or 110V

Digital controller 0-90°C (0-40°C available as an option)
• Timer function
• Ramping function

Class IP40 (IP54 available as an option)

Adjustable buckles

Three meter connection cable

Option insulation lid

NOTE! The drum heater must never overlap itself.

Standard range

Article number	Dimension	Power	Supply	Drum diameter	Drum size
30-9856	1200 x 400mm	225W	230V	ø344 to ø382mm	25 to 30 liter
30-9856A	1200 x 400mm	240W	110V	ø344 to ø382mm	25 to 30 liter
30-9857	1330 x 460mm	300W	230V	ø385 to ø424mm	50 to 60 liter
30-9857A	1330 x 460mm	300W	110V	ø385 to ø424mm	50 to 60 liter
30-9856B	1650 x 370mm	400W	230V	ø487 to ø525mm	105 liter
30-9856C	1650 x 370mm	400W	110V	ø487 to ø525mm	105 liter
30-9859	1990 x 450mm	530W	230V	ø592 to ø634mm	200 liter
30-9859A	1990 x 450mm	530W	110V	ø592 to ø634mm	200 liter
30-9858	1900 x 800mm	1200W	230V	ø592 to ø634mm	200 liter
30-9858A	1900 x 800mm	1200W	110V	ø592 to ø634mm	200 liter
30-1921	ø600 x 100mm	-	-		200 liter
