Insulation modules

IHP’s flexible insulation options are a smart solution for energy efficiency. These cuffs are designed for easy mounting, ensuring hassle-free installation for any user. With different fastening systems as Velcro, straps or buckles they open and close effortlessly, providing convenient access whenever needed. Moreover, IHP’s insulation products are versatile and compatible with other IHP products.

Our insulation modules effectively reduce energy losses, minimizes heat up time, helping to maintain optimal temperatures and maximize heat transfer to the product. By insulating, you contribute significantly to: lower energy consumption by about 20-40%, cost savings providing a quick return on investment, promoting sustainability and increases work safety by lowering the surface temperature by about 50-70%.

You can find insulation in for example plastic processing machines, pipe coating, work places to protect from high heat. With IHP’s insulation options, achieving energy savings and maximizing performance has never been easier.

IHP can provide standard insulation jackets, customized insulation cuffs and insulation foam.

Related products:
Drum insulation jackets

Technical specification

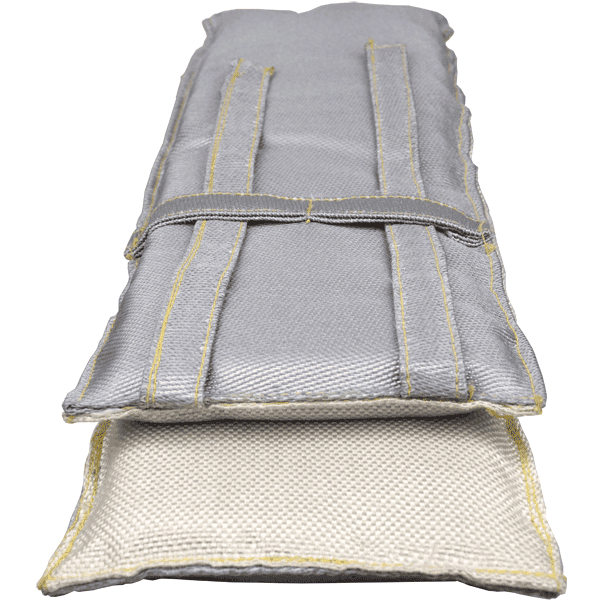

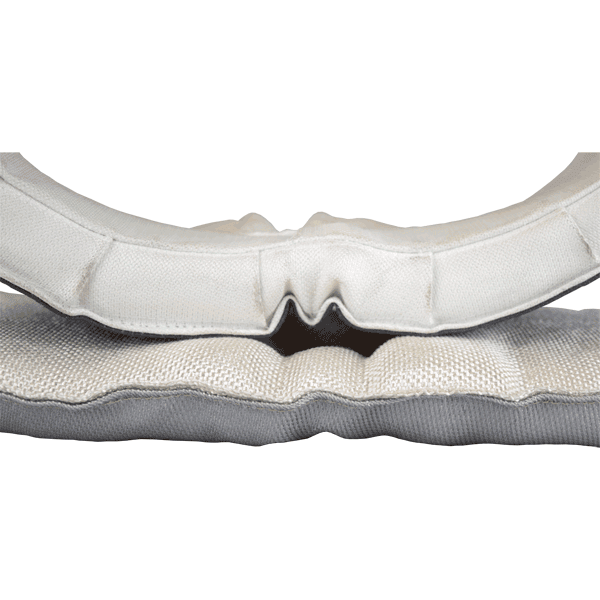

Customized insulation covers
• Fibre-glass blankets
• Sewn with high temperature thread 1000°C
• Fabrics for up to 550/600/700°C
• Thicknesses from 3 to 25 mm and weights from 300 to 4,500 grs./m²
• Density from 100 Kgs/m³ to 170 Kgs/m³
• Fire resistant up to 700°C
• Moister and chemical resistant under request (PTFE coated), other finishing also available
• Different fastening systems as Velcro, straps or buckles

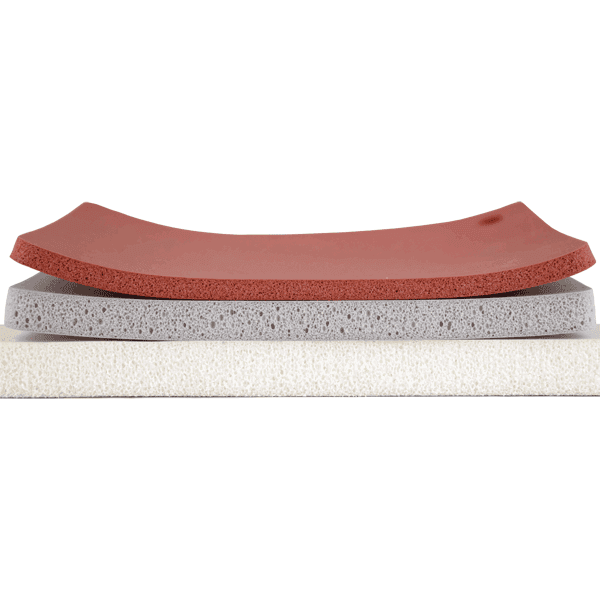

Insulation foam
• Made of Cellular Silicone Elastomer Sheeting
• Withstands temperatures up to 230°C
• Maximum sizes 1000 x 2000mm
• Thickness in 3mm, 5mm, 8mm and 12mm
• Available with adhesive backing
• Moister and chemical resistant
• Different fastening systems as Velcro or straps

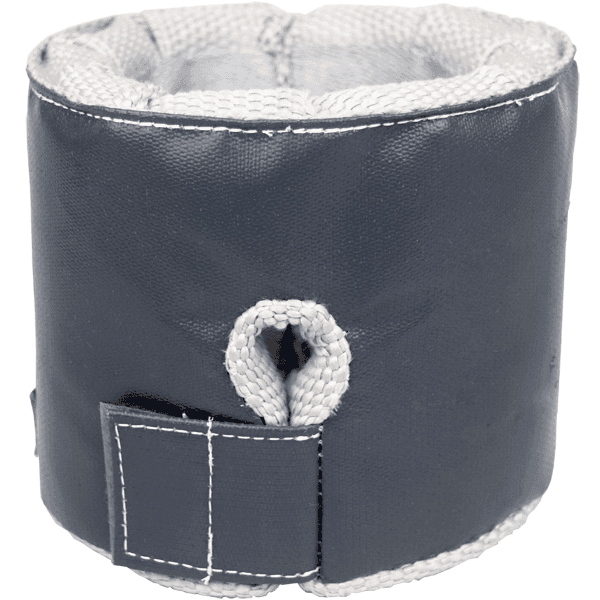

Standard insulation jackets
• Standard drum insulation jackets and lids for metal drums of 200L
• Standard IBC insulation jackets and lids for IBC 640L, 1000L and 1250L

Standard range

Article number	Description	Dimension	Size
30-HIJD	Drum insulation jacket		200 to 210 liter drums
30-1921	Drum insulation lid		200 to 210 liter drums
30-HIBC-IJ	IBC insulation manchett	1000 x 1000mm	1000 liter IBC
30-15-178	IBC DeLuxe insulation jacket	1000 x 1000mm	1000 liter IBC
30-HIBC-IL	IBC insulation lid	1000 x 1000mm	1000 liter IBC
