Mineral insulated heating cable 1000°C

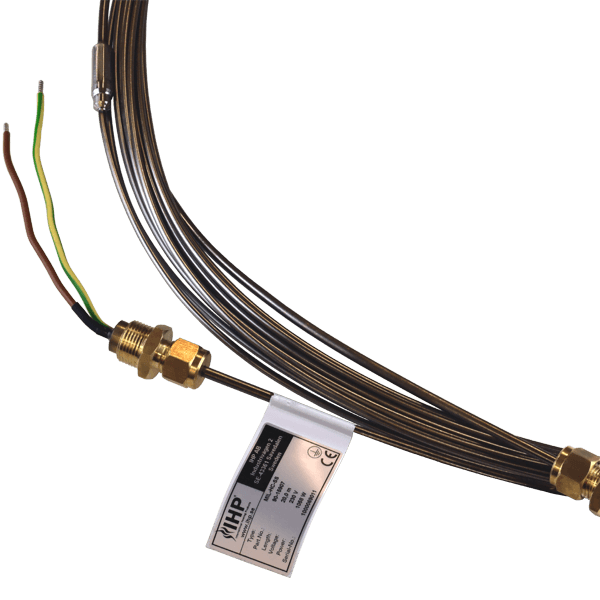

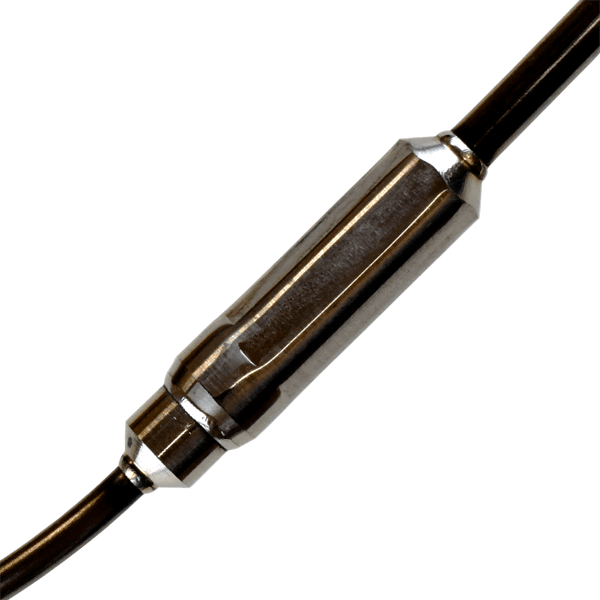

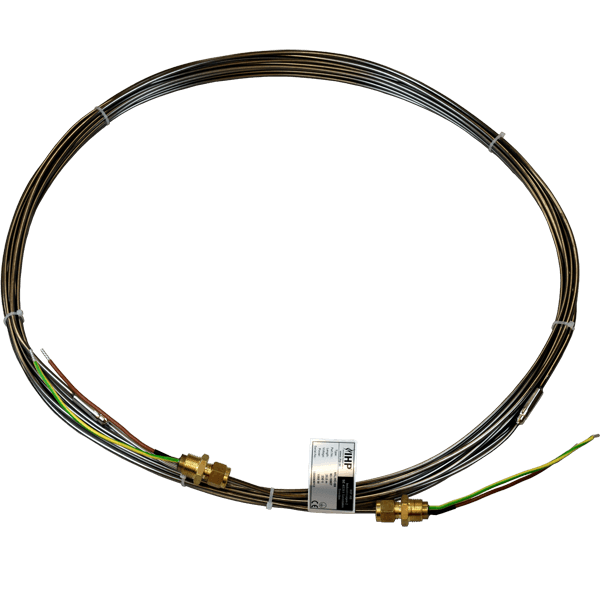

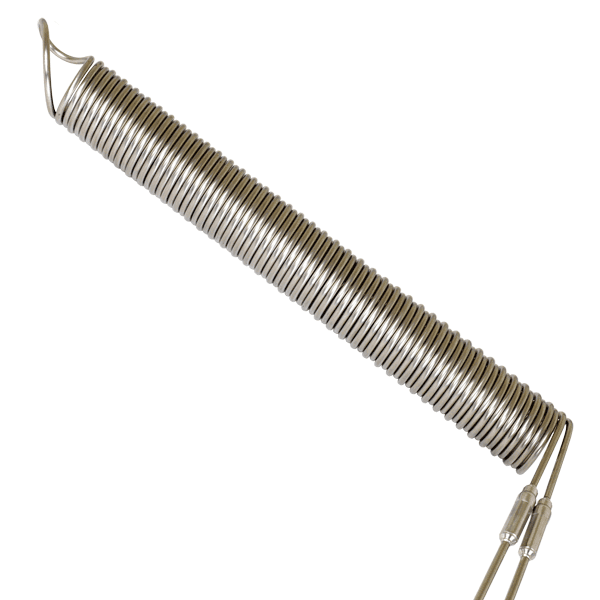

Mineral insulated heating cable, also called MI-cable, is a series-resistant flexible heating cable with outer shield of stainless steel, copper-nickel or Inconel®. MI-cable is manufactured in the same way as a tubular heater, with spiralized resistance wire surrounded by magnesium oxide as an insulator and an outer shield. The small diameter allows the MI-cable to be bent and shaped according to the object to be heated. The transition between hot and cold parts is laser welded and can withstand a heat exposure up to 1000°C.

Common uses of mineral insulated heating cables are heating of process pipes and valves, heating panels, vacuum techniques, molds, underwater radiators, reactors, sodium transportation pipes, salt transport for curing bainite, bitumen plants, gas plants and refineries etc.

Mineral insulated heating cables transmit very high power and temperature and have excellent corrosive protection properties against alkalis and acids.

IHPs mineral insulated heating cables are available in many standard lengths and can also be adapted to demands and needs for both safe and explosive-rated environment.

Bellow a list of our most common resistance wires and the relation between the MI-cables outer diameter and minimum bending radius.

Related products
Heating tape digital 250°C
Heating tape digital 450°C
Straight Coil Heater 750°C

Outer diameter and minimum bending radius

Resistance	Outer diameter	Min. bending radius stainless steel	Min. bending radius Inconel®
0,16Ω/m	6,5mm	> 30mm	> 30mm
0,25Ω/m	5,6mm	> 25mm	> 30mm
0,40Ω/m	5,0mm	> 20mm	> 30mm
0,63Ω/m	4,5mm	> 18mm	> 20mm
1,00Ω/m	4,1mm	> 16mm	> 20mm
1,60Ω/m	3,8mm	> 15mm	> 15mm
2,50Ω/m	3,6mm	> 15mm	> 15mm
4,00Ω/m	3,2mm	> 12mm	> 15mm
6,30Ω/m	3,2mm	> 12mm	> 15mm
10,0Ω/m	3,2mm	> 12mm	> 15mm

Technical specification

Highest working temperature 1000°C

Supply and power customizes to your wishes

Outer shield stainless steel, copper nickel or Inconel®

Outer diameter ø3,2 to ø6,5mm

Lengths under 5m only available in 110V

Safety class I

Protection class IP67 (waterproof)

Cold ends 0,5m or as desired

Glands M20 x 1,5
