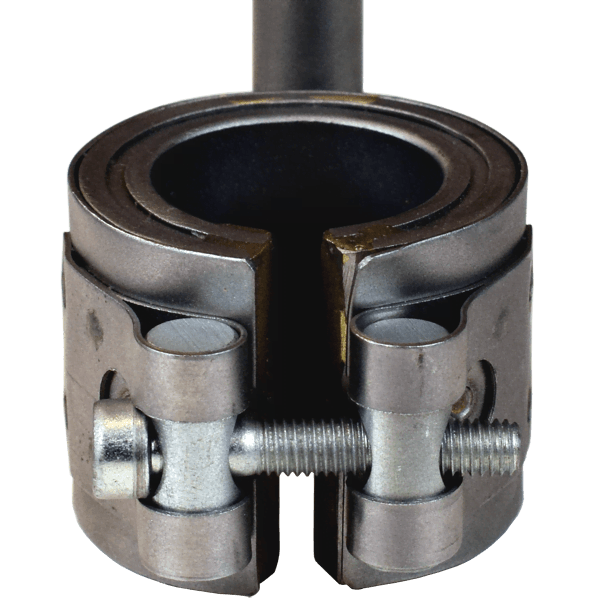

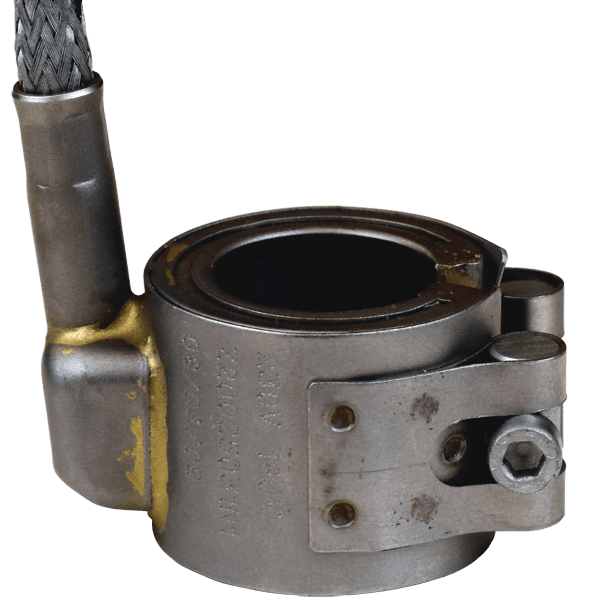

Nozzle heaters with ceramic insulation

Technical specification

Surface load up to 10W/cm²

Working temperature up to 450°C

Supply 230V as standard (other supplies optional)

Built in thermocouple type J or K (optional)

Resistance wire in nickel/chrome 80/20

Built in ceramic insulation

Casing in stainless steel AISI430

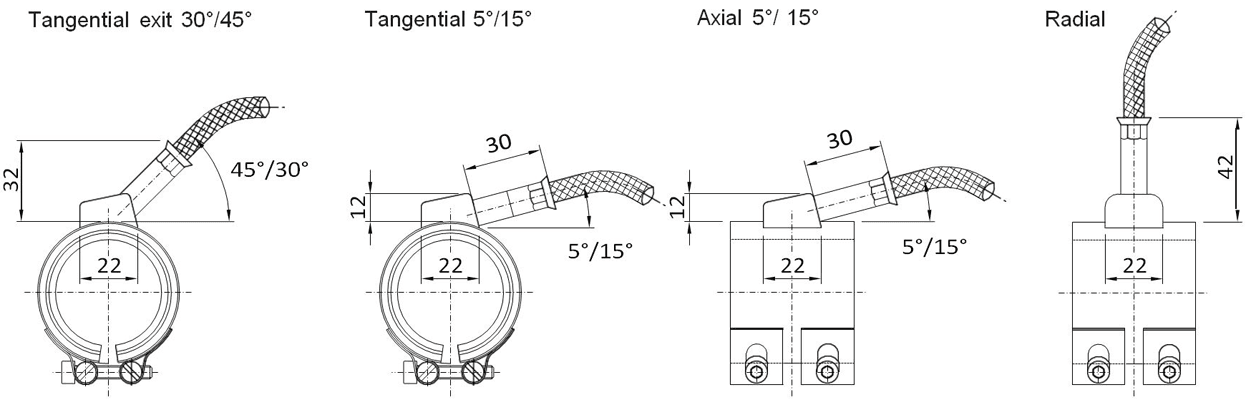

Axial cable exit 45° as standard (30° axial cable exit optional)

Metal braided supply cable 1000mm with earth connection

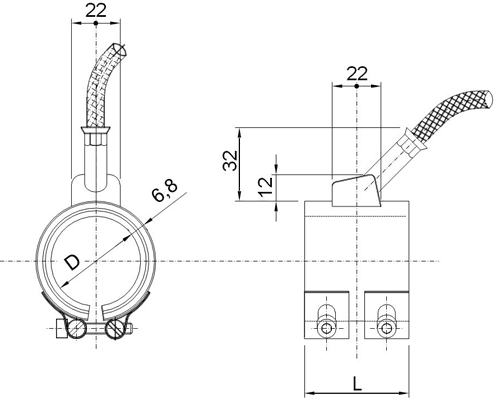

Largest diameter and length ø110 x 100mm

Standard range

Article number	Diameter (mm)	Width (mm)	Power (W)
137-Z20025019	25	19	110
137-Z20025023	25	23	130
137-Z20030019	30	19	130
137-Z20030023	30	23	160
137-Z20030027	30	27	190
137-Z20030031	30	31	215
137-Z20030035	30	35	245
137-Z20032019	32	19	140
137-Z20032023	32	23	170
137-Z20032027	32	27	200
137-Z20032031	32	31	230
137-Z20032035	32	35	260
137-Z20032039	32	39	290
137-Z20032043	32	43	320
137-Z20032039	32	47	350
137-Z20035019	35	19	155
137-Z20035023	35	23	190
137-Z20035027	35	27	220
137-Z20035031	35	31	255
137-Z20035035	35	35	285
137-Z20035039	35	39	320
137-Z20035043	35	43	350
137-Z20035047	35	47	385
137-Z20035051	35	51	420
137-Z20035059	35	55	450
137-Z20035059	35	59	485
137-Z20040019	40	19	180
137-Z20040023	40	23	215
137-Z20040027	40	27	255
137-Z20040031	40	31	290
137-Z20040035	40	35	330
137-Z20040039	40	39	370
137-Z20040043	40	43	405
137-Z20040047	40	47	440
137-Z20040051	40	51	480
137-Z20040055	40	55	520
137-Z20040059	40	59	555
137-Z20040063	40	63	595
137-Z20042019	42	19	190
137-Z20042023	42	23	230
137-Z20042027	42	27	265
137-Z20042031	42	31	305
137-Z20042035	42	35	345
137-Z20042039	42	39	385
137-Z20042043	42	43	425
137-Z20042047	42	47	465
137-Z20042051	42	51	505
137-Z20042055	42	55	545
137-Z20042059	42	59	585
137-Z20042063	42	63	625
137-Z20043019	43	19	195
137-Z20043023	43	23	235
137-Z20043027	43	27	275
137-Z20043031	43	31	315
137-Z20043035	43	35	355
137-Z20043039	43	39	395
137-Z20043043	43	43	435
137-Z20043047	43	47	475
137-Z20043051	43	51	515
137-Z20043055	43	55	555
137-Z20043059	43	59	600
137-Z20043063	43	63	640
137-Z20045019	45	19	200
137-Z20045023	45	23	245
137-Z20045027	45	27	285
137-Z20045031	45	31	330
137-Z20045035	45	35	370
137-Z20045039	45	39	415
137-Z20045043	45	43	455
137-Z20045047	45	47	500
137-Z20045051	45	51	540
137-Z20045055	45	55	585
137-Z20045059	45	59	625
137-Z20045063	45	63	670
137-Z20048019	48	19	215
137-Z20048023	48	23	260
137-Z20048027	48	27	305
137-Z20048031	48	31	350
137-Z20048035	48	35	395
137-Z20048039	48	39	440
137-Z20048043	48	43	485
137-Z20048047	48	47	530
137-Z20048051	48	51	580
137-Z20048055	48	55	625
137-Z20048059	48	59	670
137-Z20048063	48	63	715
137-Z20050019	50	19	225
137-Z20050023	50	23	270
137-Z20050027	50	27	320
137-Z20050031	50	31	365
137-Z20050035	50	35	415
137-Z20050039	50	39	460
137-Z20050043	50	43	510
137-Z20050047	50	47	555
137-Z20050051	50	51	600
137-Z20050055	50	55	650
137-Z20050059	50	59	695
137-Z20050063	50	63	740
137-Z20055019	55	19	250
137-Z20055023	55	23	300
137-Z20055027	55	27	350
137-Z20055031	55	31	405
137-Z20055035	55	35	455
137-Z20055039	55	39	505
137-Z20055043	55	43	560
137-Z20055047	55	47	610
137-Z20055051	55	51	660
137-Z20055055	55	55	715
137-Z20055059	55	59	765
137-Z20055063	55	63	815
137-Z20056019	56	19	255
137-Z20056023	56	23	305
137-Z20056027	56	27	355
137-Z20056031	56	31	410
137-Z20056035	56	35	465
137-Z20056039	56	39	515
137-Z20056043	56	43	570
137-Z20056047	56	47	620
137-Z20056051	56	51	675
137-Z20056055	56	55	725
137-Z20056059	56	59	780
137-Z20056063	56	63	830
137-Z20058019	58	19	260
137-Z20058023	58	23	315
137-Z20058027	58	27	370
137-Z20058031	58	31	425
137-Z20058035	58	35	480
137-Z20058039	58	39	535
137-Z20058043	58	43	590
137-Z20058047	58	47	645
137-Z20058051	58	51	700
137-Z20058055	58	55	755
137-Z20058059	58	59	810
137-Z20058063	58	63	860
137-Z20060019	60	19	270
137-Z20060023	60	23	325
137-Z20060027	60	27	385
137-Z20060031	60	31	440
137-Z20060035	60	35	495
137-Z20060039	60	39	555
137-Z20060043	60	43	610
137-Z20060047	60	47	665
137-Z20060051	60	51	720
137-Z20060055	60	55	780
137-Z20060059	60	59	835
137-Z20060063	60	63	890
137-Z20063019	63	19	285
137-Z20063023	63	23	345
137-Z20063027	63	27	400
137-Z20063031	63	31	460
137-Z20063035	63	35	520
137-Z20063039	63	39	580
137-Z20063043	63	43	640
137-Z20063047	63	47	700
137-Z20063051	63	51	760
137-Z20063055	63	55	820
137-Z20063059	63	59	880
137-Z20063063	63	63	935
137-Z20065019	65	19	290
137-Z20065023	65	23	355
137-Z20065027	65	27	415
137-Z20065027	65	31	475
137-Z20065035	65	35	535
137-Z20065039	65	39	600
137-Z20065043	65	43	660
137-Z20065047	65	47	720
137-Z20065051	65	51	780
137-Z20065055	65	55	845
137-Z20065059	65	59	905
137-Z20065063	65	63	965
137-Z20068019	68	19	305
137-Z20068023	68	23	370
137-Z20068027	68	27	435
137-Z20068031	68	31	500
137-Z20068035	68	35	560
137-Z20068039	68	39	625
137-Z20068043	68	43	690
137-Z20068047	68	47	755
137-Z20068051	68	51	820
137-Z20068055	68	55	885
137-Z20068059	68	59	945
137-Z20068063	68	63	1010
137-Z20070019	70	19	315
137-Z20070023	70	23	380
137-Z20070027	70	27	445
137-Z20070031	70	31	515
137-Z20070035	70	35	580
137-Z20070039	70	39	645
137-Z20070043	70	43	710
137-Z20070047	70	47	775
137-Z20070051	70	51	840
137-Z20070055	70	55	910
137-Z20070059	70	59	975
137-Z20070063	70	63	1040
137-Z20072019	72	19	325
137-Z20072023	72	23	390
137-Z20072027	72	27	460
137-Z20072031	72	31	530
137-Z20072035	72	35	595
137-Z20072039	72	39	665
137-Z20072043	72	43	730
137-Z20072047	72	47	800
137-Z20072051	72	51	865
137-Z20072055	72	55	935
137-Z20072059	72	59	1005
137-Z20072063	72	63	1070
137-Z20075019	75	19	340
137-Z20075023	75	23	410
137-Z20075027	75	27	480
137-Z20075031	75	31	550
137-Z20075035	75	35	620
137-Z20075039	75	39	690
137-Z20075043	75	43	760
137-Z20075047	75	47	830
137-Z20075051	75	51	910
137-Z20075055	75	55	980
137-Z20075059	75	59	1045
137-Z20075063	75	63	1115
137-Z20080019	80	19	360
137-Z20080023	80	23	435
137-Z20080027	80	27	510
137-Z20080031	80	31	585
137-Z20080035	80	35	660
137-Z20080039	80	39	735
137-Z20080043	80	43	810
137-Z20080047	80	47	890
137-Z20080051	80	51	960
137-Z20080055	80	55	1040
137-Z20080059	80	59	1115
137-Z20080063	80	63	1190
137-Z20085019	85	19	385
137-Z20085023	85	23	460
137-Z20085027	85	27	540
137-Z20085031	85	31	620
137-Z20085035	85	35	700
137-Z20085039	85	39	780
137-Z20085043	85	43	860
137-Z20085047	85	47	940
137-Z20085051	85	51	1020
137-Z20085055	85	55	1100
137-Z20085059	85	59	1185
137-Z20085063	85	63	1265
137-Z20090019	90	19	405
137-Z20090023	90	23	490
137-Z20090027	90	27	575
137-Z20090031	90	31	660
137-Z20090035	90	35	745
137-Z20090039	90	39	830
137-Z20090043	90	43	915
137-Z20090047	90	47	1000
137-Z20090051	90	51	1085
137-Z20090055	90	55	1170
137-Z20090063	90	59	1250
137-Z20090063	90	63	1335
137-Z20095019	95	19	425
137-Z20095023	95	23	515
137-Z20095027	95	27	605
137-Z20095031	95	31	695
137-Z20095035	95	35	785
137-Z20095039	95	39	875
137-Z20095043	95	43	965
137-Z20095047	95	47	1055
137-Z20095055	95	51	1145
137-Z20095055	95	55	1230
137-Z20095059	95	59	1320
137-Z20095063	95	63	1410
137-Z20100019	100	19	450
137-Z20100023	100	23	545
137-Z20100027	100	27	640
137-Z20100031	100	31	730
137-Z20100035	100	35	825
137-Z20100039	100	39	920
137-Z20100043	100	43	1045
137-Z20100047	100	47	1110
137-Z20100051	100	51	1205
137-Z20100055	100	55	1300
137-Z20100059	100	59	1390
137-Z20100063	100	63	1485
