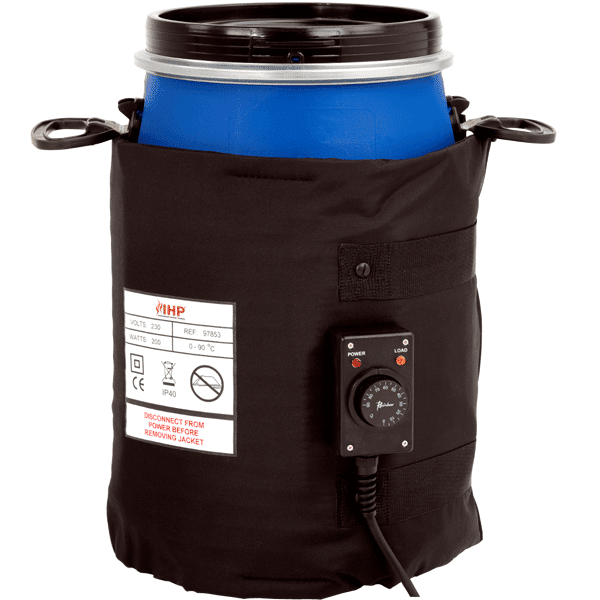

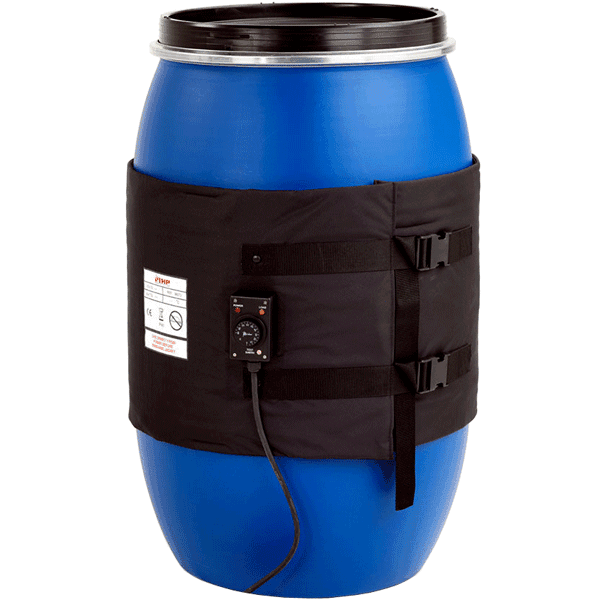

Side drum heater 90°C

This heat cuff is a side drum heater designed to fit all types of drums, especially plastic drums, when the surface load in combination with the sewn in insulation requires lower temperature to achieve good heat distribution. The side drum heater is very energy efficient and made of durable material in flame retardant polyester.

The drum heater is equipped with buckles for quick and easy mounting and has an integrated analogue adjustable capillary thermostat 0-90°C. IHP can also offer digital integrated thermostats or sensors for external control cabinets.

Our side drum heaters are currently installed in, among other, the processing industry, food industry, pharmaceutical industry and cosmetic industry and warms everything from fats, oils, resins to food.

We customize the side drum heaters to all sizes of drums and have a standard range for drum sizes 25, 50, 105 and 200 liters.

Related products
Drum insulation jackets
Drum heater digital 90°C
Silicone drum heaters 120°C
Base drum heater 150°C
Silicone drum heater IP65 200°C
Heating jacket drum digital 200°C
Drum heaters food grade 220°C
High temperature drum heaters 220°C

Technical specification

Side drum heater in flame retardant polyester

Built in insulation in glass fiber (E-glass)

Supply 230V or 110V

Thermostat 0-90°C (0-40°C available as option)

Class IP40

Double insulated construction for high security

Four meter of connection cable

Standard range

Article number	Dimension	Power	Supply	Drum diameter	Drum size
30-HISD25-1	1020 x 400mm	200W	230V	ø277 to ø315mm	25 liter
30-HISD25-2	1020 x 400mm	200W	110V	ø277 to ø315mm	25 liter
30-HISD50-1	1250 x 460mm	250W	230V	ø350 to ø388mm	50 liter
30-HISD50-2	1250 x 460mm	250W	110V	ø350 to ø388mm	50 liter
30-HISD105-1	1650 x 370mm	400W	230V	ø470 to ø515mm	105 liter
30-HISD105-2	1650 x 370mm	400W	110V	ø470 to ø515mm	105 liter
30-HISD200-1	1950 x 450mm	450W	230V	ø573 to ø611mm	200 liter
30-HISD200-2	1950 x 450mm	450W	110V	ø573 to ø611mm	200 liter
30-HISD200-3	1950 x 800mm	1200W	230V	ø573 to ø611mm	200 liter
30-HISD200-4	1950 x 800mm	1200W	110V	ø573 to ø611mm	200 liter
