Silicone drum heater IP65 200°C

Our Ready to Go Series offers drum heaters made with silicone rubber in high IP class, they are the ideal solution for heating substances in damp and outdoor conditions stored in steel drums. The drum heaters are mounted on to the outside of the drum and heats for example water, fats, butter, sugar, glucose, chocolate, oils, diesel, lubricant oil, and other industrial liquids and substances indirectly.

This kind of drum heater has a high surface load, is flexible and easy to mount by simple spring fixing. A digital control unit with adjustable working range 0-200°C is included in the package.

Related products
Drum insulation jackets
Side drum heater 90°C
Drum heater digital 90°C
Silicone drum heaters 120°C
Base drum heater 150°C
Heating jacket drum digital 200°C
Drum heaters food grade 220°C
High temperature drum heaters 220°C

Downloads

Technical specification

Double insulated construction for high security
Power supply 230V
Digital controller 0-200°C
Class IP65
Moister and chemical resistant
Two meter supply cable
NOTE! The drum heater must never overlap or run when not mounted on the steel drum

Standard range

Part no.DimensionPowerSupplyDiameter of drumDrum size

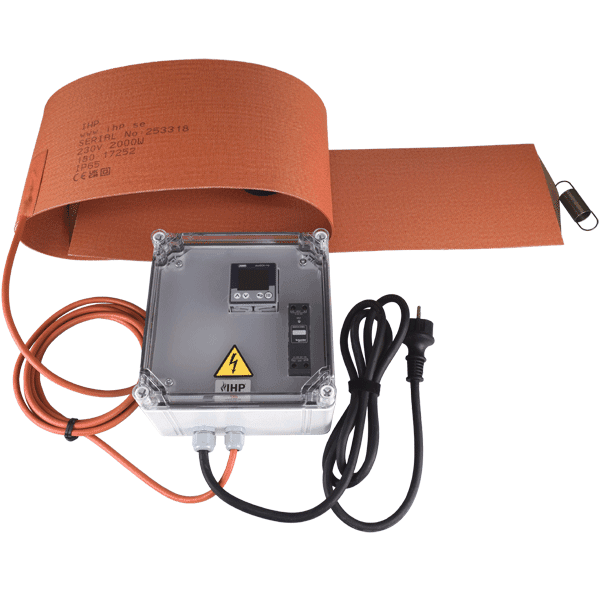

180-172521665 x 180mm2000W230Vø570mm200 liters

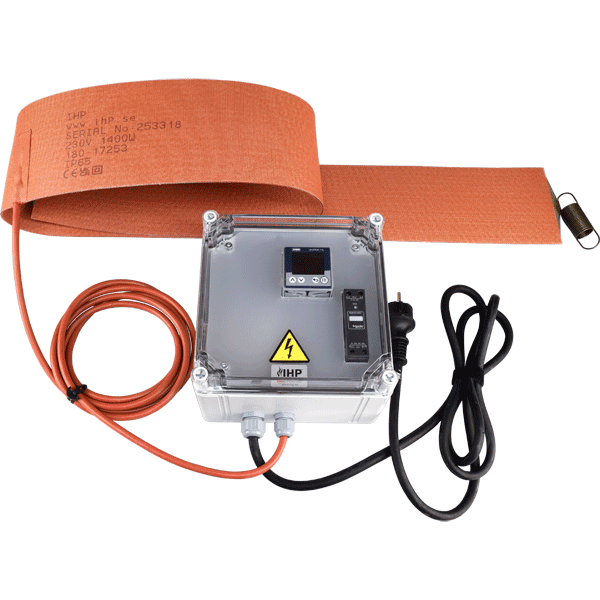

180-172531665 x 125mm1400W230Vø570mm200 liters

Other products

You may also be interested in

Control cabinet PID

IHPs smallest control cabinet is a “stand alone” system that fits a variety of heating applications where the need is one heating zone and one sensor. In our PID controller there is plenty of intelligence that comes in handy when needed for even heating, ramp functionality, maximum adjustable temperature, program steps with different set points or only temperature control that is CE marked and approved.

We supply the control cabinets in three standard versions and you simply select the cabinets according to the type of sensor that fits your process. IHP can also offer some popular options such as quick plug between heater and control cabinet and help program the control cabinet with the parameters that are important in your process.

The control cabinet can advantageously be used in conjunction with all IHPs heaters that need less than 16Ampere.
