Temperature sensors

Precise temperature control is key to safe and efficient heating. At IHP, we offer a broad range of sensors and thermocouples tailored for industrial applications, designed to deliver accurate readings in demanding environments. These temperature probes can be installed to measure temperature in liquids, gases, and solids.

Whether you need to control, monitor, or safeguard your process, choosing the right sensor is crucial. A well-integrated sensor setup not only ensures efficient energy use but also extends the lifespan of your equipment. We offer a broad selection of standard sensors, RTDs and thermocouples, along with several customization options to suit your specific application.

For best results, we strongly recommend combining a process sensor for precise temperature regulation with a high-temperature heater limiter for high temperature alarm. This combination provides both control and safety, helping to protect the heater, the process, and the surrounding installation. Combined with our control cabinets equipped with PID controllers, this forms a reliable and effective system solution.

Technical specification

PT100 -200° to +600°C, recommended -40° to +300°C (depending on leads type) Copper, 2-wire/3-wire/4-wire/6-wire (double sensor), class B /A / AA , ungrounded only

Thermocouple J -40° to +750°C, recommended -40° to +550°C (depending on lead and surface material) Fe/CuNi, black/white, class 1 only, grounded/ungrounded

Thermocouple N -40° to +1200°C, recommended -40° to +850°C (depending on lead and surface material) NiCroSil/NiSil, pink/white, class 1 only, grounded/ ungrounded

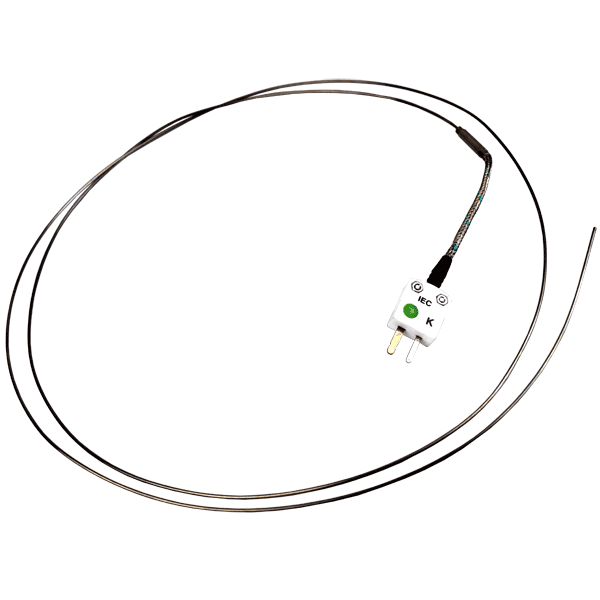

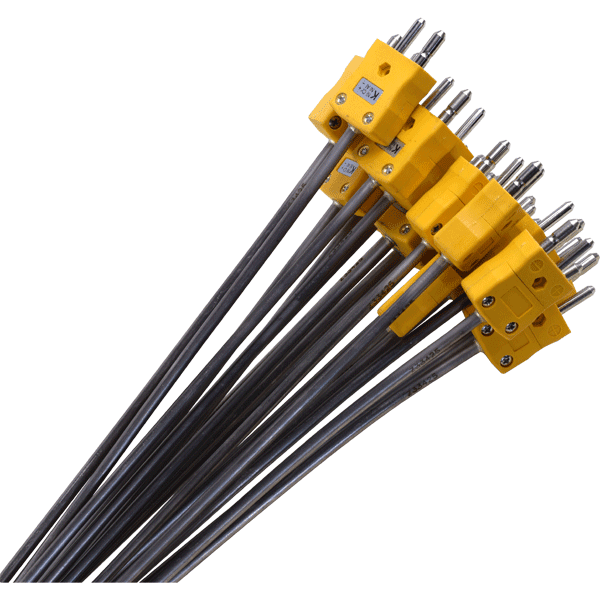

Thermocouple K -40° to +1150°C (depending on lead and surface material) NiCr/NiAl, green/white, class 1 only, grounded/ ungrounded

Other thermocouple options: type L, type R, type S (high temp, ceramic), type T (accurate in negative values)

Lead types: Silicone (max +200°C), PTFE (max+ 260°C), Steel braid (max +400°C) with/without spring, Glass fiber (max +350°C or +450°C or +1000°C)

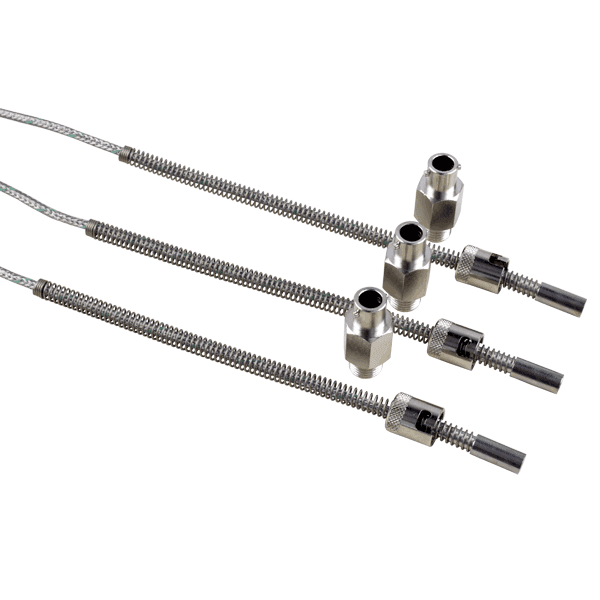

Mounting fittings: threaded fitting, flange, ring, eyelet, pipe band clamp, round/square plate, bayonet

Protection tubes: with or without DIN head, threaded connectors or flanges

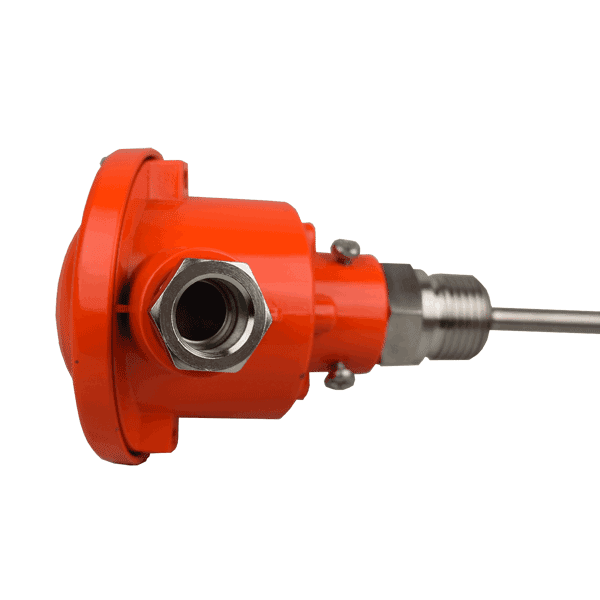

Option DIN head: aluminum, stainless steel, IP65/IP67/IP68, ATEX

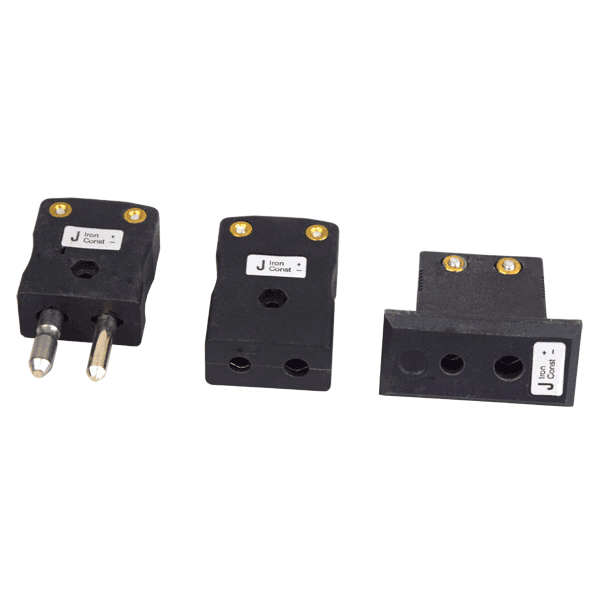

Option plugs: standard plug female/male/built-in female, miniature plug female/male/built-in female, PT100 3-wire/4-wire plug female/male/built-in female, Harting connection (PT100 only), M12 connector, DIN43650 connector

Option: Transmitter 4-20mA, HART communication Protocol, also available in DIN rail version
